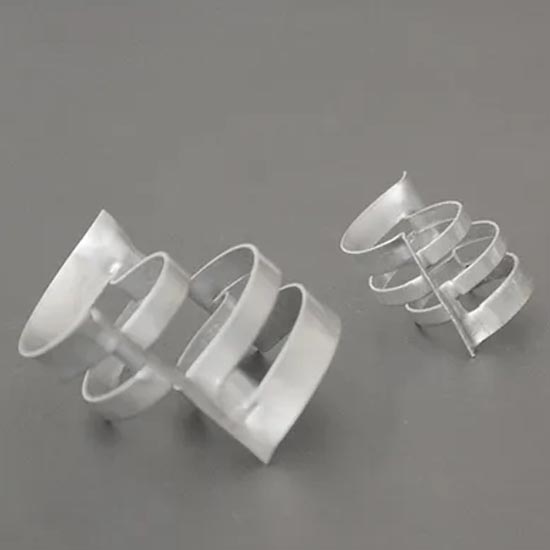

304 316 Metal Conjugate Ring

Metal Conjugate Ring is a new generation of random tower packing that combines the advantages of the Raschig ring and the Intalox saddle. It has a proper flanging structure and optimized diameter ratio. Because of its special design, the contact between packing to packing and packing to tower wall is sufficient and uniform, without the issue of intussusception. This design improves hydrodynamics and enhances mass transfer performance.

When filled in a packed tower, Metal Conjugate Rings are often directionally arranged, similar to structured packing. This results in large liquid flow capacity, low pressure drop, and high mass transfer efficiency. Compared with traditional packings, the Metal Conjugate Ring has a larger effective surface area, which helps increase the separation effect in various processes.

Metal Conjugate Ring is made of high-quality metals such as carbon steel, stainless steel 304, 304L, 410, 316, and 316L. It has excellent resistance to heat and corrosion. This packing material is widely applied in the alkali-chloride industry, petroleum industry, coal gas industry, chemical industry, and environmental protection industry. With its advanced structural advantages, Metal Conjugate Ring has become one of the most effective types of random metal packing.

As a combination of ring and saddle structure, Metal Conjugate Ring provides higher efficiency and stronger performance compared with traditional saddle or ring packing. It is suitable for demanding operations in both high-pressure towers and vacuum towers. Its durability and compressive strength make it a reliable solution in modern chemical engineering applications.

Features

• Materials: carbon steel, SS304, SS304L, SS410, SS316, SS316L, etc.
• High liquid flux, excellent quality, and high efficiency
• High crushing strength and easy operation
• Superior hydrodynamics and mass transfer performance
• Thin wall and small bulk density
• Low pressure drop
• High mechanical strength and durability
• Large effective interfacial area
• Excellent separation and mass transfer efficiency
• Cost-effective solution for industrial towers

Specification

Metal Conjugate Ring combines the advantages of both ring and saddle packing. It offers large liquid handling capacity, low pressure drop, and high separation efficiency. Because of these properties, it is widely used in petrochemical engineering, fertilizer production, and environmental protection fields. Typical applications include vapor washing towers, purification towers, absorption towers, and stripping services.

Metal Conjugate Ring is suitable for high-pressure towers and vacuum towers. It is commonly used in distillation, desulfurization, and decarbonization processes. This packing is also applied in the chemical industry, metallurgical industry, and various environmental protection systems. Its performance makes it a preferred choice for modern industrial packed towers.

Technical Parameter for Metal Conjugate Ring

Size (mm)	Specific Surface (m²/m³)	Void Fraction (%)	Packing Number (Piece/m³)	Bulk Density (Kg/m³)
16*16*0.4	313	97	211250	354
25*25*0.5	185	95	75000	216
38*38*0.8	116	96	19500	131
50*50*0.8	86	96	9772	97
80*80*0.8	81	95	3980	94.5

Advantages

• Low pressure drop across the packed bed
• High liquid flux and strong separation performance
• Excellent hydrodynamic and mass transfer efficiency
• Durable, cost-effective, and easy to maintain

Applications Tower Packing Metallic Conjugate Rings

Metal Conjugate Ring is widely applied in petrochemical plants, fertilizer production facilities, and environmental protection systems. It is used in absorption towers, purification towers, and stripping towers. In petroleum refining, it plays an important role in desulfurization and decarbonization. In chemical processing, it is suitable for both high-pressure and vacuum operations. Its versatility makes Metal Conjugate Ring a reliable choice for different industries.

Package

Metal Conjugate Ring is securely packaged in woven bags, plastic drums, or steel drums. Packaging ensures safe handling, storage, and transportation. Customized packaging options are available upon request. Standard delivery lead time is usually within a few weeks, with shipping available by sea or air.
