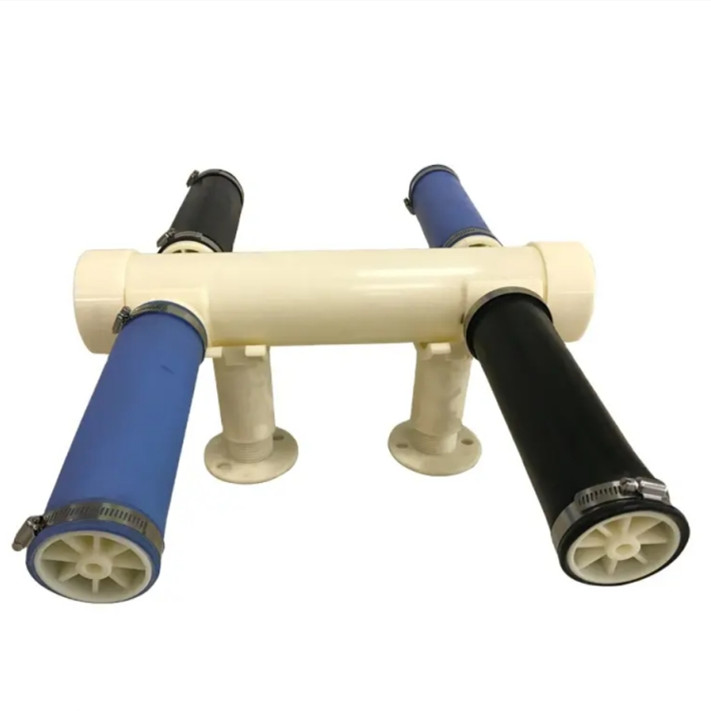

Fine Bubble Tube Diffuser

Fine Bubble Tube Diffuser can be attached singly or in pairs to various rectangular and round tubes (made of ABS material) using suitable adapters. The membranes are crafted from top-tier EPDM material and are provided with either fine or coarse-bubble perforations. The support tubes (constructed from ABS or PVC material) can be reused when replacing the membranes. These units deliver optimal performance at minimal cost and necessitate low maintenance.

EPDM Membrane Material

EPDM Membrane Material is fabricated through compression molding with a standard cure, low plasticizer content, and perforations of 1mm or 2mm. Utilizing modern equipment for compression molding, which incorporates individual thermocouples and vacuum technology, ensures the production of consistently high-quality products.

Siliccon Membrane Material

Silicone Membrane Material boasts high temperature and chemical resistance distinct from other materials. Silicone, being inorganic, provides exceptional resistance to many organic wastes. Our formulation is engineered to resist tearing and creep while generating fine bubbles with minimal headloss.

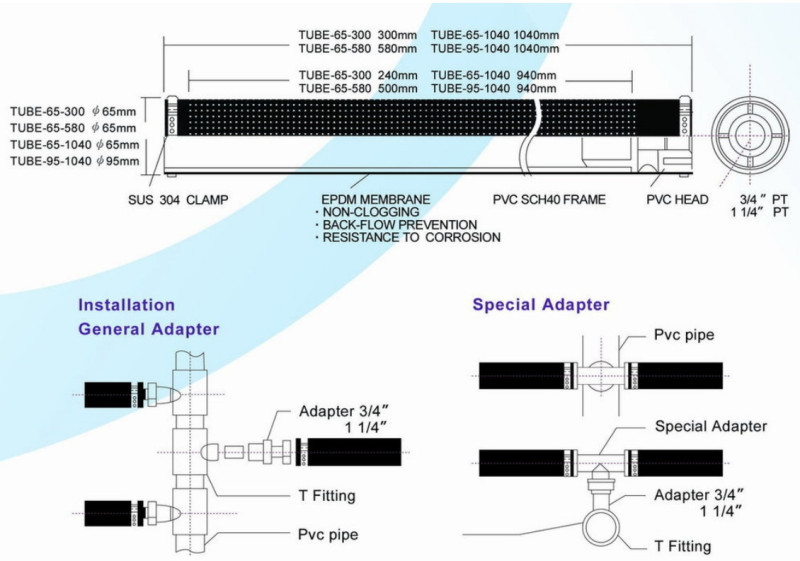

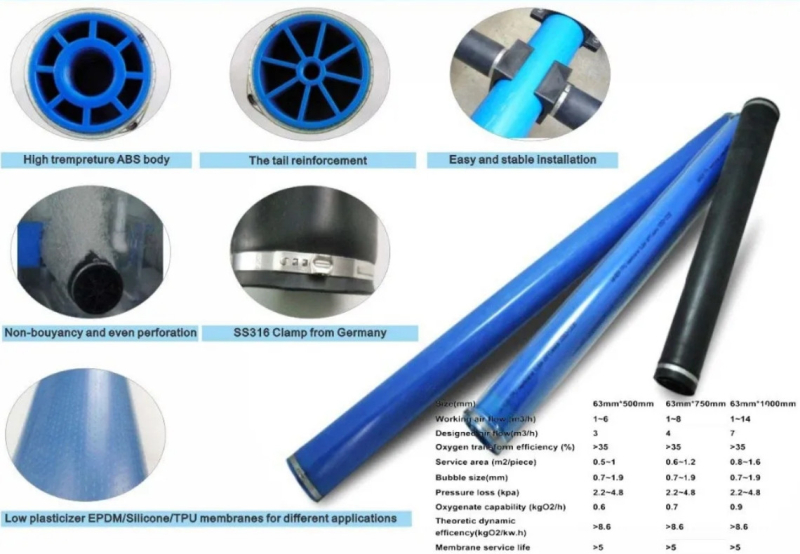

Structure of Tube Diffuser

Membrane with EPDM or VITON rubber compound.
Air inlet with modled injection of PVC or ABS.
Supporting frame with PVC or ABS pipe.
Clamp with stainless steel.
Non tearing & non clogging I-shaped slits.
Double pipe design for long duty life.

Features of Tube Diffuser:

High oxygen transfer efficiency
Low cost of total ownership
Anti-clogging, corrosion resistant
Ease of installation,2 minutes for one diffuser
Maintenance-free design, 8 years service life
EPDM/SILICONE membrane with excellent performance

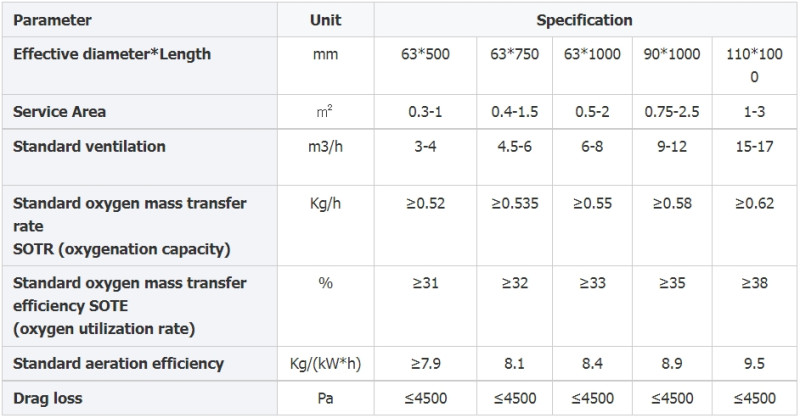

Specification of Tube Diffuser

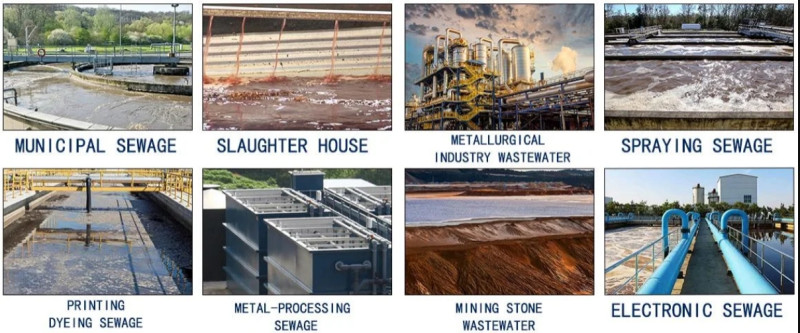

Toepassing:

Municipal wastewater treatment
Industrial wastewater treatment
Clean water treatment
Sludge stabilization
Wastewater ozone diffusion
Aeration of fish ponds
Aeration of streams and lakes
Oxygenation of activation basins
Oxygenation to stabilize sludge
CO₂ admission for neutralization

Packages

carton box or as your request.

Port:ShangHai; ShenZhen, NingBo

Bedrijfscertificaat

Waarom voor ons kiezen?

1. Kwaliteit: Uitstekende kwaliteit is ons belangrijkste streven; ons kwaliteitscontroleteam voert strenge kwaliteitscontroles uit.

2. Capaciteit: Er wordt voortdurend nieuwe apparatuur aangeschaft om aan de productie-eisen van klanten te voldoen en in te spelen op veranderingen in de markt

3. Team: Al meer dan 12 jaar gespecialiseerd in chemische verpakkingen; ons professionele exportteam biedt klanten een uitgebreide service

4. Efficiëntie: 24 uur per dag online service om al uw vragen te beantwoorden (e-mail, TradeManager, Skype, MSN, WhatsApp, telefoon). De verkoopprijs rechtstreeks van de fabriek wordt binnen 24 uur verstrekt.

5. Op maat gemaakt: afmetingen en vorm kunnen worden aangepast aan de wensen van de klant 6. Betaling: er kan worden gekozen uit flexibele en diverse betalingswijzen, wat het voor u nog gemakkelijker maakt.
