Kunststoffsattel Super Intalox PE,PP,RPP,PVC,CPVC,PVDF

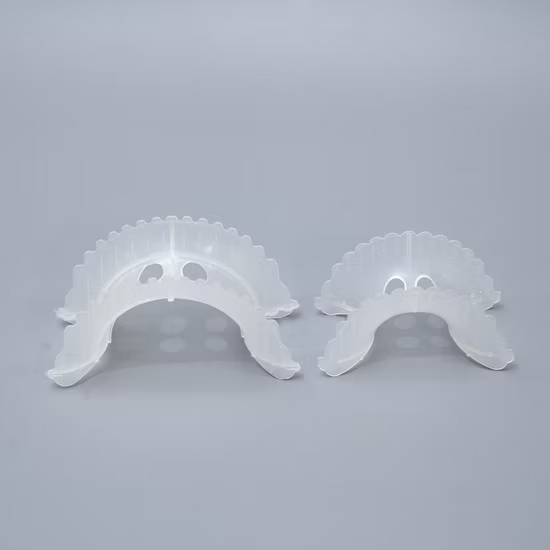

Plastic Super Intalox Saddle, also known as Plastic Intalox Saddle, is an improved version of the traditional intalox saddle. It features a shell-like curved surface with serrated edges and larger openings, enhancing the connection between the inner and outer surfaces of the filler. This design combines the benefits of both ring-type and saddle-type packing, offering a large flux capacity and efficient liquid distribution. With low pressure drop and high mass transfer efficiency, the Plastic Super Intalox Saddle outperforms other packing types. It provides superior liquid distribution and increased gas flow, offering less resistance, higher flux, and improved efficiency compared to the Pall ring. This durable, easy-to-handle packing is widely used in various applications for its excellent performance.

Jetzt anfragen

Die Plastic Super Intalox Saddle is an improved random packing material designed for high-efficiency gas-liquid separation. Its unique structure combines the benefits of ring and saddle shapes, providing high void space, excellent mass transfer performance, and low pressure drop.

Hauptmerkmale

  • High void ratio (90–98%) for low pressure drop and enhanced throughput
  • Superior mass transfer efficiency due to shell-like surface and serrated edges
  • Strong chemical resistance and mechanical stability
  • Lightweight and easy to install or replace
  • Applicable in high-temperature and corrosive environments

Materials Available

  • PP (Polypropylene)
  • PE (Polyethylene)
  • RPP (Reinforced Polypropylene)
  • PVC / CPVC
  • PVDF (Polyvinylidene Fluoride)

Typical Specifications

Größe Fläche
(m²/m³)		 Leere Bruchteil
(%)		 Pieces per
m³		 Schüttdichte
(kg/m³)
1″ (25 mm) ~260 ~90% ~97,600 ~92
1.5″ (38 mm) ~178 ~96% ~25,200 ~75
2″ (50 mm) ~168 ~97% ~6,300 ~76
3″ (76 mm) ~130 ~98% ~3,700 ~64

Anwendungen

  • Absorption towers and scrubbing towers
  • Desulfurization and decarbonization units
  • Distillation columns in chemical and petrochemical industries
  • Environmental and wastewater treatment systems

Product Advantages

  • ✔ High efficiency gas-liquid contact
  • ✔ Low energy consumption due to minimal pressure loss
  • ✔ Excellent durability in harsh chemical environments
  • ✔ Long service life and cost-effective maintenance

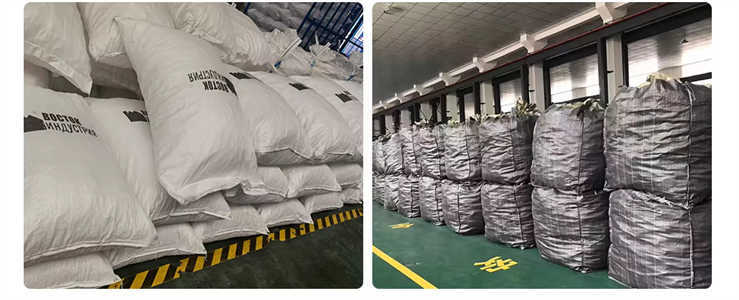

Package Plastic Super Intalox Saddle

For size customization, material selection, or bulk pricing, please contact our sales team. We provide technical support and fast delivery worldwide.
